Business process mapping is the practice of turning a workflow into a validated visual diagram that shows every step, decision, handoff, and system involved from start to finish. Your fastest next move: pick one high-value process, define its start and stop points, and sketch the current state in a tool like Lucidchart or Microsoft Visio within the next 60 minutes. Common notation standards include BPMN (Business Process Model and Notation), maintained by the Object Management Group, SIPOC (Suppliers, Inputs, Process, Outputs, Customers) for rapid scoping, and the APQC Process Classification Framework for enterprise-level alignment.
Three things every practitioner should know before diving in:
- A map is only as trustworthy as the validation session behind it. Unvalidated maps reflect opinions, not reality.
- BPMN is the right choice when your map will drive an automation spec or get handed to engineers. For team-level analysis, standard flowchart symbols are enough.
- Process discovery and process mapping are related but distinct: discovery uncovers what actually happens; mapping documents it in a structured, reusable format.
Table of Contents
- What business process mapping is and why it matters
- Common map types and when to use each
- Which symbols and notation should you use?
- How to create a process map step by step
- How abstraction levels help you manage scope
- How to analyze process maps and prioritize improvements
- Templates, examples, and reusable resources
- How to choose the right process mapping tool
- Why you should map before you automate
- Key Takeaways
- The case for mapping that most teams miss
- How Golden Path Digital can help you move from map to modernization
- Useful sources and further reading
- FAQ
What business process mapping is and why it matters
A process map turns tacit knowledge into a visible diagram showing steps, decisions, people, and handoffs. That visibility is the point. When a workflow exists only in people’s heads, every new hire, every audit, and every automation project starts from scratch. A validated map changes that.
The distinction from adjacent terms is worth drawing clearly. Process modeling is broader and often more abstract, used to simulate or analyze process behavior mathematically. Value stream mapping (VSM) is a Lean-specific technique focused on material and information flow, typically in manufacturing. Business process mapping sits between the two: concrete enough to be actionable, flexible enough to apply across industries.
The primary benefits your team will see:
- Improvement readiness: Maps surface bottlenecks, redundant steps, and unclear ownership before you spend a dollar on fixes.
- Automation readiness: You cannot effectively automate a workflow that has not first been documented, validated, and optimized through mapping.
- Onboarding: A swimlane diagram cuts new-hire ramp time by making cross-functional responsibilities visible.
- Compliance: Regulated industries use maps to demonstrate control over processes during audits.
- Continuous improvement: Maps give Lean, Six Sigma, and Agile teams a shared baseline to measure change against.
Stakeholders who benefit most include process owners, operations managers, IT architects, compliance officers, and anyone responsible for a system integration or modernization project.
Common map types and when to use each

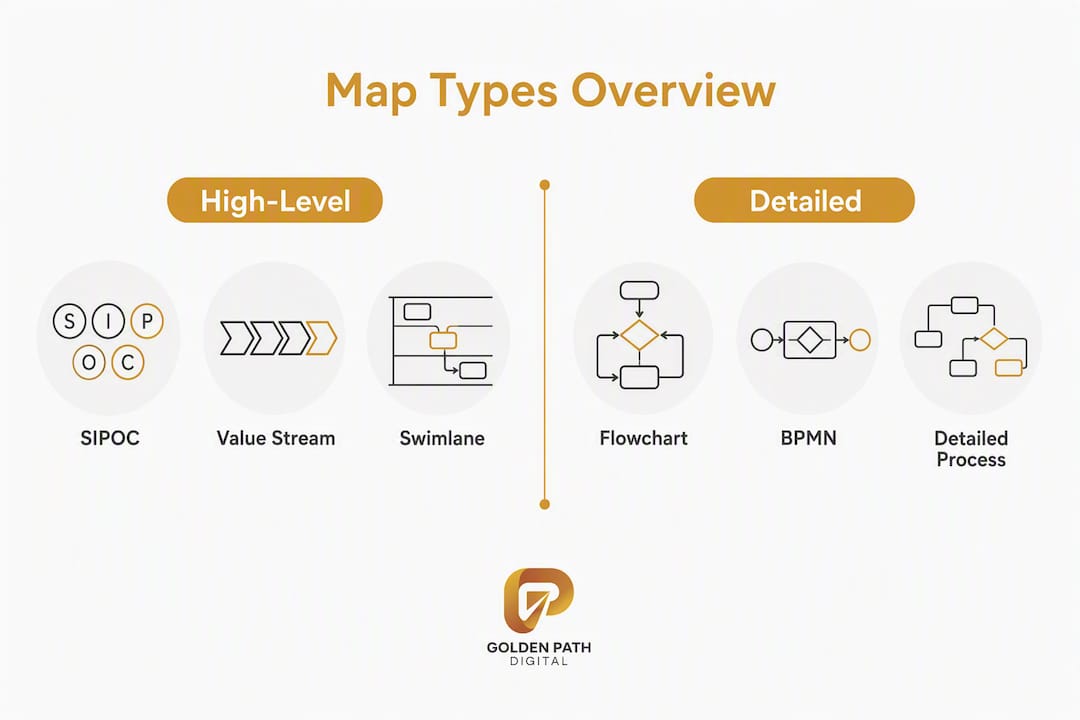

Choosing the wrong map type wastes time and creates confusion. The right choice depends on your audience, your goal, and how much detail the situation actually requires.
| Map Type | Best Purpose | Example Use Case |
|---|---|---|
| SIPOC | Rapid scope agreement, executive alignment | Defining the boundaries of an order-to-cash process before a Six Sigma project |
| Flowchart | Step-by-step process documentation for a single role or system | Documenting an IT ticket escalation path |
| Swimlane (cross-functional) | Showing handoffs between roles, teams, or systems | Mapping a hiring process across HR, hiring manager, and IT |
| Value Stream Map (VSM) | Identifying waste and cycle time in production or service delivery | Analyzing a manufacturing line or a software release pipeline |
| BPMN diagram | Automation specs, engineering handoffs, tool portability | Designing a loan approval workflow for a BPM platform |
| Detailed process map (Level 3) | Deep analysis of a specific subprocess | Mapping exception handling in an accounts payable process |
A few practical trade-offs worth knowing. SIPOC diagrams are fast to produce and great for getting stakeholder alignment, but they lack the detail needed for automation. Swimlane maps are the most readable format for cross-functional teams, though they can become cluttered when more than four or five lanes are involved. BPMN delivers precision and tool portability, but it requires training and is often overkill for a team-level improvement workshop.
High-level maps like SIPOC are quick to produce, and teams commonly start there to agree on scope before zooming into detailed or swimlane maps for the subprocesses that matter most.
Which symbols and notation should you use?
Notation is a communication choice, not a technical requirement. The goal is a map your audience can read and act on without a legend in hand.
Core flowchart symbols every practitioner needs:
- Oval/terminator: Marks the start and end of a process.
- Rectangle/process box: Represents a single activity or task.
- Diamond/decision: A yes/no or conditional branch point.
- Arrow/flow line: Shows the direction of sequence or flow.
- Parallelogram/input-output: Represents data entering or leaving the process.
- Cylinder/database: Indicates a data store or system record.
These six symbols handle the vast majority of team-level mapping work. They are universally recognized and require no training for most business audiences.
BPMN, maintained by the Object Management Group, adds pools, lanes, events, gateways, and message flows on top of this foundation. That precision matters when your map will be consumed by an automation platform, handed to a development team, or needs to be portable across tools. For a process improvement workshop with operations staff, BPMN notation often creates more friction than clarity.
Pro Tip: Match your notation to the least-technical person in the room who needs to validate the map. If your process owner is a department manager rather than a developer, stick to basic flowchart symbols. You can always produce a BPMN version later for the engineering handoff.
One common mistake: adding notation complexity to signal rigor. A map loaded with BPMN sub-process markers and intermediate events that no one on the team can interpret will not get validated accurately, which means it will not be trusted.
How to create a process map step by step
A trustworthy map follows a disciplined sequence. Skipping steps, particularly validation, produces a diagram that reflects how people think the process works rather than how it actually runs.
- Define scope and boundaries. Name the process, its trigger (what starts it), and its termination point (what ends it). Agree on this in writing before any mapping begins.
- Identify stakeholders. List every role, team, and system involved. Include the people who handle exceptions, not just the happy path.
- Observe or walk the process. Where possible, watch the process run in real time. Shadow the people doing the work rather than relying solely on interviews.
- List activities in sequence. Gather a raw list of every step, decision, and handoff. Use sticky notes or a shared whiteboard to keep this collaborative.
- Draw the as-is map. Sequence the activities into your chosen format (swimlane, flowchart, BPMN). Include decision branches, exception paths, and system touchpoints.
- Validate with participants. Walk the map with the people who do the work. Skilled facilitation uncovers invisible workflows that are critical to value delivery but never appear in documentation.
- Analyze and mark issues. Annotate the validated map with bottlenecks, rework loops, unclear ownership, and system dependencies.
- Design the to-be map. Document the improved or target state. Keep the as-is map intact for comparison and audit purposes.
- Assign ownership and set an update cadence. Every map needs a named owner and a scheduled review date. A map left unchanged becomes fiction.
Facilitation tips for eliciting tacit knowledge:
- Ask “what happens when that fails?” after every step. Exceptions reveal the real process.
- Use break-fix scenarios: “What if the system is down?” or “What if the customer submits incomplete data?” These prompts surface hidden logic that subject matter experts commonly forget to mention unless prompted.
- When two participants give conflicting answers, do not average them. Investigate the discrepancy, because it usually indicates a real process variation or an undocumented workaround.
Common pitfalls:
- Mapping the ideal process instead of the actual one.
- Skipping the validation session because the team is confident in their knowledge.
- Producing a map at the wrong level of detail for the intended audience.
Validation checklist before labeling a map as trusted:
- At least two process participants have reviewed and confirmed the sequence.
- All exception paths are documented, not just the happy path.
- System names and data inputs/outputs are labeled.
- The map owner and last-validated date are recorded on the document.
Pro Tip: Record your validation sessions (with consent). Participants often correct themselves mid-conversation, and those corrections contain the most valuable process intelligence.
How abstraction levels help you manage scope
Not every process needs a Level 3 detailed map. Choosing the right level of abstraction is what keeps mapping projects from collapsing under their own weight.
The standard hierarchy used in complex legacy environments runs from enterprise to task:
- Level 0 (Enterprise/Value Chain): The highest view, showing major value chains or business domains. Useful for executive alignment and portfolio planning.
- Level 1 (Capability): Business capabilities within a domain, such as “Order Management” or “Customer Onboarding.” Used for capability gap analysis.
- Level 2 (High-Level Process): The process steps within a capability, typically a handful of boxes. This is where SIPOC diagrams live.
- Level 3 (Detailed Process): Individual tasks, decisions, and system interactions. Used for improvement analysis, automation specs, and compliance documentation.
The practical rule: start at Level 2 to agree on scope, then drill into Level 3 only for the subprocesses where the analysis or automation work will actually happen. Mapping everything to Level 3 from the start is one of the most common reasons process mapping initiatives stall.
Layered maps also support modernization prioritization. When you can see which Level 3 processes share system dependencies, you can cluster them into modernization waves rather than tackling them in isolation. This is the same logic behind wave-based refactoring approaches, where a capabilities matrix guides sequencing based on dependency counts and business priority.
Gaps between stakeholder perception and actual system behavior reliably indicate hidden technical debt. When your Level 3 map does not match what the system logs show, you have found undocumented business rules, and those are exactly the kind of risk that derails modernization projects.
How to analyze process maps and prioritize improvements
A validated map is the starting point for analysis, not the finish line. The goal is to extract specific, measurable insights that drive prioritization decisions.
Metrics to extract directly from your maps:
- Cycle time: Total elapsed time from trigger to completion, including wait time.
- Handoff count: Every handoff is a potential delay and error point.
- Rework loops: Steps that feed back to an earlier point signal quality failures.
- Decision point density: High concentrations of decision diamonds indicate complexity and exception risk.
- System dependency count: How many systems does a single process touch? More dependencies mean higher modernization risk.
- Exception frequency: How often does the process leave the happy path?
Once you have these metrics, a simple weighted scoring model helps prioritize where to act first. Score each candidate process on four dimensions: business impact, process complexity, number of dependencies, and regulatory risk. Weight the dimensions according to your organization’s priorities, then rank by total score. This is the same prioritization logic that wave-based implementation approaches use to sequence modernization work.
Validate map findings against system data. Pull transaction logs, throughput metrics, or error rates for the process you mapped. When the data contradicts the map, the map is wrong or the process has an undocumented variation. Either way, you have found something worth investigating before you automate.
Pro Tip: Run break-fix scenarios on your completed map: trace what happens when each system dependency fails. This reveals hidden dependencies and failure modes that subject matter experts commonly overlook during standard walkthroughs.
Legacy modernization checklists consistently recommend architecture mapping, dependency graphs, integration inventories, and data-flow documentation as prerequisites before selecting a modernization approach. The analysis phase of process mapping produces exactly these artifacts.
Templates, examples, and reusable resources
Templates reduce the time from blank page to working draft. The right template for your situation depends on the map type and the audience.
Common template formats and when to use them:
- SIPOC template: One-page table with five columns. Use it at the start of any improvement or automation project to agree on scope.
- Swimlane flowchart template: Horizontal or vertical lanes per role or system. Use it when cross-functional handoffs are the primary concern.
- Detailed flowchart template: Single-lane, step-by-step. Use it for process documentation, SOPs, and automation specs.
- Value stream map template: Includes process boxes, inventory triangles, push/pull arrows, and a timeline. Use it for Lean waste analysis.
A concise before/after example:
A regional healthcare network mapped its patient referral process using a swimlane diagram. The as-is map revealed seven handoffs between the referring physician’s office, the specialist’s scheduling team, and the patient, with no single owner responsible for confirming the appointment. Average referral-to-appointment time was running over two weeks. After redesigning the to-be process to consolidate ownership in a single care coordinator role and eliminate three redundant notification steps, the network reduced handoffs from seven to four and cut referral-to-appointment time significantly. The map itself became the training document for the new workflow.
File formats and sharing recommendations:
- Use PNG or SVG for documentation systems, wikis, and presentations.
- Export BPMN XML when the map will be imported into a BPM platform or automation tool.
- Store the source file (Visio, Lucidchart, or draw.io format) alongside the export so the map can be updated without starting over.
What to include in a reusable mapping pack:
- A symbol legend on every map.
- The process owner’s name and role.
- The last-validated date and the names of participants who validated it.
- Version number and a brief change log.
- Links to related maps at adjacent abstraction levels.
How to choose the right process mapping tool
Tool selection is a practical decision, not a prestige one. The right tool is the one your team will actually use and that produces artifacts compatible with your automation or documentation systems.
Tool categories:
| Category | Best For | Key Limitation |
|---|---|---|
| Simple diagram editors (Visio, draw.io) | Individual mapping, offline use, SOPs | Limited real-time collaboration |
| Collaborative cloud diagramming (Lucidchart, Miro) | Team workshops, remote facilitation | May lack BPMN export depth |
| Process mining / intelligence platforms | Discovering actual process behavior from event logs | Requires system log access; higher cost |
| BPMN modeling tools (Camunda Modeler, Signavio) | Automation specs, engineering handoffs | Steeper learning curve for non-technical users |
| Automation/orchestration platforms with built-in modeling | End-to-end from map to deployed automation | Vendor lock-in risk if formats are proprietary |
Selection criteria checklist:
- Real-time collaboration for distributed teams.
- Version control and change history.
- BPMN export (XML) for automation platform compatibility.
- Integration with documentation systems (Confluence, SharePoint).
- Role-based permissions for sensitive process data.
- Auditability: can you see who changed what and when?
Red flags that signal friction ahead:
- No export to open formats (BPMN XML, SVG, or PNG).
- Proprietary file formats that lock your maps to a single vendor.
- No version history, making it impossible to compare as-is and to-be states.
- No collaboration features, which forces a single-author bottleneck.
For teams planning to connect mapped processes to workflow automation tools, BPMN export capability is not optional. It is the handshake between your map and the automation platform.
Why you should map before you automate
The case for mapping as a prerequisite to automation is not theoretical. Automating a broken process is an expensive pitfall: mapping should be used to fix or remove redundant and unclear steps before any automation is implemented. Skipping this step does not save time; it locks inefficiency into code.
The same principle applies to modernization. Legacy modernization checklists consistently call for architecture mapping, dependency graphs, integration inventories, and data-flow documentation before any modernization approach is selected. Without these artifacts, teams make sequencing decisions based on assumptions rather than evidence.
A wave-based approach to modernization, as described in AWS prescriptive guidance on wave-based refactoring, starts with discovery, builds a capabilities matrix, and then prioritizes capabilities using a weighted scoring model that factors dependencies, business priority, and complexity. Process maps are the raw material for that matrix.
For IBM i environments specifically, the IBM i modernization assessment approach at Golden Path Digital applies this same logic: map the RPG codebase’s dependencies before touching a line of code, so that every modernization decision is grounded in what the system actually does rather than what the documentation says it does.
Treat maps as living blueprints. Schedule a validation gate before each automation wave. A map that was accurate six months ago may not reflect the process today, especially in environments where workarounds accumulate quietly.
Key Takeaways
Business process mapping delivers its highest value when it precedes automation and modernization work, not when it follows it.
| Point | Details |
|---|---|
| Map before you automate | Automating an undocumented or broken process locks in inefficiency; validate the as-is map first. |
| Match map type to purpose | Use SIPOC for scope, swimlane for handoffs, and BPMN when the map drives an automation spec. |
| Validate with real participants | Walk the map with the people who do the work; unvalidated maps reflect assumptions, not reality. |
| Use abstraction levels to manage scope | Start at Level 2 (high-level process), then drill to Level 3 only for the subprocesses that need analysis. |
| Golden Path Digital’s approach | Golden Path Digital applies dependency-first mapping to IBM i RPG environments before any modernization or automation work begins. |
The case for mapping that most teams miss
There is a gap between how process mapping is sold and what actually makes it valuable. Most guides frame it as a documentation exercise: draw the boxes, get sign-off, move on. That framing is why so many process maps end up in a shared drive, never updated, never used.
The maps that actually drive change share one characteristic: they were built to expose what the team did not know, not to confirm what they thought they knew. That means running break-fix scenarios, not just happy-path walkthroughs. It means comparing the map against system logs to find the discrepancies. It means treating a gap between stakeholder perception and actual system behavior as a signal worth investigating, because those gaps are where the hidden technical debt lives.
There is also a timing problem that rarely gets discussed. Teams tend to initiate mapping projects when something has already broken: a failed automation, a compliance finding, a modernization project that stalled. At that point, mapping is remediation. The organizations that get the most value from it treat mapping as a prerequisite, not a response. They map before they automate, before they modernize, and before they onboard a new system. The map becomes the spec, not the post-mortem.
For legacy environments in particular, the stakes are higher than most practitioners realize. In IBM i shops, for example, decades of undocumented business rules are embedded in RPG programs that no one has read in years. A process map that does not account for those dependencies is not just incomplete; it is actively misleading. The RPG code analysis work Golden Path Digital does is a direct extension of this principle: surface what the code actually does before you decide what to change.
The single most underused technique in process mapping is the break-fix scenario. Ask “what happens when this system is unavailable?” after every system touchpoint. The answers will tell you more about your actual process than any walkthrough of the happy path.
How Golden Path Digital can help you move from map to modernization
When your process maps reveal legacy dependencies, undocumented business rules, or automation blockers, the next step is a structured assessment, not a guess.
Golden Path Digital’s legacy code modernization framework applies dependency-first mapping to IBM i RPG codebases and Laravel environments before any modernization work begins. The assessment surfaces what your system actually does, maps the dependency graph, identifies dormant features that waste modernization resources, and produces a prioritized modernization plan your team can execute in waves. You get a clear picture of your blast radius before you touch a line of code.
The IBM i modernization assessment is the right starting point if your team is managing a legacy RPG environment and needs to know what to modernize, in what order, and at what risk. Schedule an assessment and you will receive a dependency map, a capabilities matrix, and a wave-based prioritization plan grounded in what your system actually does today.
Useful sources and further reading
- Business Process Mapping (Wikipedia): A solid reference definition covering the purpose, scope, and history of process mapping as a discipline.
- Business Process Mapping: Templates and How-To (Pepper Effect): Practical templates and a clear how-to guide covering SIPOC, swimlane, and detailed flowchart formats.
- 10 Business Process Modeling Best Practices (Inteq Group): Prescriptive guidance on modeling standards, including break-fix analysis and baseline/exception path documentation.
- AWS Prescriptive Guidance: Wave-Based Refactoring: The authoritative source for dependency-weighted prioritization and wave-based modernization sequencing.
- Legacy System Modernization Checklist (Ardura Consulting): A practical checklist covering architecture mapping, dependency graphs, and integration inventories as prerequisites for modernization.
- Legacy Modernization Guide (Texas DIR): Government-published guidance on business capability analysis and process analysis as inputs to modernization planning.
- What Is Business Process Mapping (Coursera): An accessible overview suitable for practitioners new to the discipline.
- IBM Blueworks Live Benefits (Nexright): Covers the value of treating process maps as living blueprints and the role of collaborative tooling in keeping maps current.
FAQ
What are the five steps of process mapping?
The core steps are: define scope and boundaries, gather process information from participants, draw the as-is map, validate it with the people who do the work, and analyze the validated map to identify improvements. Most practitioners add a sixth step: design the to-be map and assign an owner to keep it current.
What are the five levels of process mapping?
Definitions vary by framework, but a common model runs from Level 0 (enterprise value chain) through Level 1 (business capability), Level 2 (high-level process), Level 3 (detailed process with tasks and decisions), and Level 4 (work instructions or system-level detail). Most improvement and automation work happens at Levels 2 and 3.
What is the difference between process discovery and process mapping?
Process discovery uncovers what actually happens in a workflow, often by mining system event logs or conducting structured interviews. Process mapping documents that reality in a structured, visual format. Discovery feeds mapping; mapping makes the discovered process reusable and analyzable.
What are the five stages of BPM (Business Process Management)?
The standard BPM lifecycle covers design, modeling, execution, monitoring, and optimization. Process mapping is the core activity in the design and modeling stages and provides the baseline for monitoring and optimization.
How does Golden Path Digital use process mapping in modernization projects?
Golden Path Digital applies dependency-first mapping to IBM i RPG codebases before any modernization work begins. The IBM i modernization assessment produces a dependency map and a wave-based prioritization plan so teams know exactly what to change, in what order, and at what risk.
